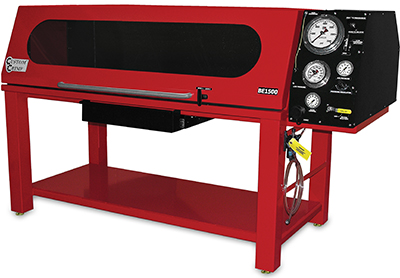

Manual Test Benches
BE1500 BE2500 BE3500

Manual Test Benches Brochure

Manual Test Bench User Manual

.

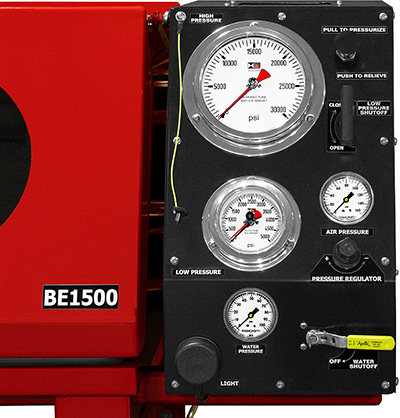

BE1500
BE2500
BE3500

Inside Cabinet Dimensions	D: 67" x W: 33" x H: 17" D: 1702mm x W: 838mm x H: 432mm
Overall Dimensions	D: 85" x W: 39" x H: 52"D: 2159mm x W: 991mm x H: 1321mm
Weight	955 lbs / 433 kg
Maximum Pressure	21,750 psi / 1500 bar	36,250 psi / 2500 bar	50,750 psi / 3500 bar
High Pressure Gage	30,000 psi / 2069 bar	40,000 psi / 2758 bar	60,000 psi / 4137 bar
LowPressure Gage	5,000 psi / 345 bar
Electrical Requirements	110V - 1 Phase- 15 Amp

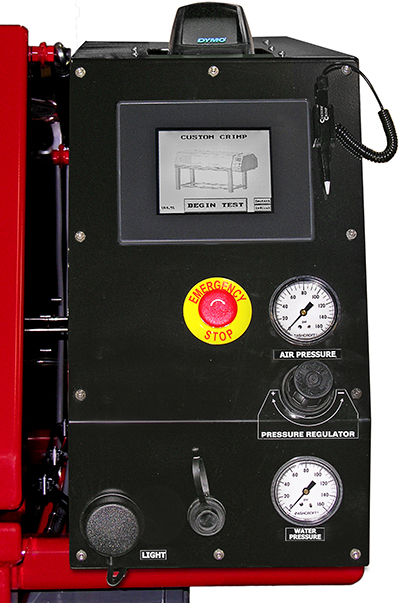

Electronic Test Benches
BE 1500PLC, 2500PLC, 3500PLC, 4000PLC

Electronic Test Bench Brochure

Electronic Test Bench Manual

Pressure Transducer calibration/evaluation

Test Bench Preventative Maintenance

BE 1500PLC
2500PLC
3500PLC
4000PLC

Inside Cabinet Dimensions	D: 67" x W: 33" x H: 17" D: 1702mm x W: 838mm x H: 432mm
Overall Dimensions	D: 85" x W: 39" x H: 52" D: 2159mm x W: 991mm x H: 1321mm
Weight	955 lbs / 433 kg
Maximum Pressure	21,750 psi / 1500 bar	36,250 psi / 2500 bar	50,750 psi / 3500 bar	60,000 psi / 4000 bar
Low Pressure Gage	5,000 psi / 345 bar
Electrical Requirements	110V - 1 Phase- 15 Amp

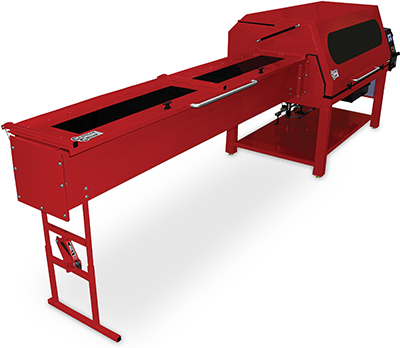

Industrial Test Benches
IND350 1500PLC, 2500PLC, 3500PLC, 4000PLC

Industrial Test Bench Brochure

Industrial Test Bench Manual

Pressure Transducer calibration/evaluation

Test Bench Preventative Maintenance

IND350 1500PLC
2500PLC
3500PLC
4000PLC

Inside Cabinet Dimensions	D: 80" x W: 44" x H: 27" D: 2032mm x W: 838mm x H: 686mm
Overall Dimensions	D: 98" x W: 50" x H: 65" D: 2489mm x W: 1270mm x H: 1651mm
Weight	1,800 lbs / 816 kg
Maximum Pressure	21,750 psi / 1500 bar	36,250 psi / 2500 bar	50,750 psi / 3500 bar	60,000 psi / 4000 bar
Low Pressure Gage	5,000 psi / 345 bar
Electrical Requirements	110V - 1 Phase- 15 Amp
