Production / Industrial Crimpers
EU38 Crimper
CC38 Product Brochure
CC38 Series Operational Manual
View Features and Accessories

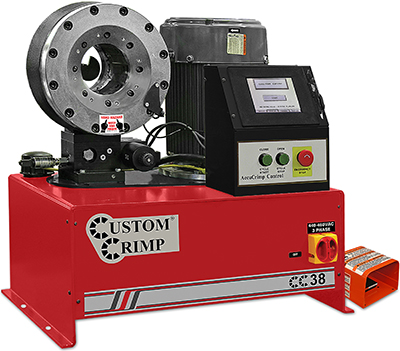

- CC38_Crimper_BU
- 6_Station_Die_Rack_BU
- 84mm_Quick_Change_Tool_BU
- 84S_Group_BU
- Act_Controller_BU
- Act_Controller_Start_Screen_BU
- CC38_Back_Stop_BU
- CC38_Master_Die_Foam_Pads_102531_Group_BU
- CC38_Max_Opening_BU
- CC38_Mounted_on_die_rack_table_BU
- CC38_quick_Change_Tool_BU
- CC_Foot_Switch_BU
- Crimper_Stand_16_Die_Holer_Panel_BU
- CrimpX_Mini_Grease_Gun_With_Grease_103889_BU
- Electronic_Back_Stop_BU
- Jumper_Cables_BU
- Manual_Back_Stop_BU
- SM300_Mobile_Cart_101956_BU
EU38 Crimper
| Max Head Opening w/o Dies | 4.72" / 120mm |
| Master Die Inside Diameter | 3.3" / 84mm |
| Opening w/o dies: | 4.72" / 120mm |
| Control System | ACT™ Controller (Automatic Crimp Technology) |
| Crimping Force | 240 Ton / 218 tonne |
| Crimper Size | D: 20" x W: 29" x H: 28" D: 508mm x W: 737mm x H: 711mm |
| 1-2 Wire Capacity * | 2" / -32 |
| 4SP Capacity * | 1 1/2" / - 24 |
| 6SP Capacity * | 1 1/4" / -20 |
| Weight | 495 lbs / 225 kg |
| Power | 5 HP 230V - 3 P (Standard) 5 HP 440V - 3 P (Optional) 5 HP 230V - 1 P (Optional) 1 HP 12V (Optional) 1 HP 24V (Optional) |
| Electrical Requirements | 230V - 3 Phase - 20 Amp 440V - 3 Phase - 20 Amp 230V - 1 Phase - 30 Amp 12V DC Power (Truck/Auto) 24V DC Power (Truck/Auto) |
| Reservoir Capacity | 8 US Gallons / 30.3 L |
| Oil Type | ISO Viscosity Grade 46 |
| Adapter Dies | N/A |
| Dies | 84S Finn Power P20 Imperial Eastman KK120 |
| Crimps / Hour *** | 1300 |
*Crimper capacity is estimated based on typical 1-piece fitting.
Actual results may vary depending on the hose and fitting manufacturer
*** Crimps per hour estimate based on -08 100R2AT hose with a 1 piece fitting.
EU440 Crimper
CC440 Product Brochure
CC440 Series Operations Manual
View Features and Accessories
- 160S_Group_BU
- 6_Station_Die_Rack_BU
- 99MM_Quick_Change_Tool_BU
- 99P_Group_BU
- Act_Controller_BU
- Act_Controller_Start_Screen_BU
- Catalog-CC100Mirror
- CC440_Adapter_Dies_160MM_TO_99MM_BU
- CC440_Back_Stop_BU
- CC440_Crimper_BU
- CC440_Fixed_6_Oclock_Die_BU

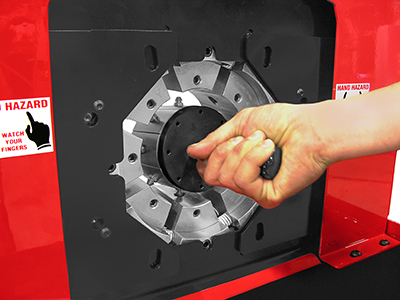

- CC440_Quick_Change_Tool_BU
- CC_Foot_Switch_BU
- Crimper_Stand_16_Die_Holer_Panel_BU
- Electronic_Back_Stop_BU
- Manual_Back_Stop_BU
EU440 Crimper
| Max Head Opening w/o Dies | 9 3/4" / 248mm |
| Master Die Inside Diameter | 5.71" / 145mm |
| Control System | ACT™ Controller (Automated Crimp Controller) |
| Crimping Force | 265 Ton / 240 tonne |
| Crimper Size | D: 44" x W: 48" x H: 61" D: 1118mm x W: 1219mm x H: 1549mm" |
| Control System | ACT™ Controller (Automated Crimp Technology) |
| Crimping Force | 265 Ton / 240 tonne |
| Crimper Size | D: 44" x W: 48" x H: 61" D: 1118mm x W: 2119mm x H: 1549mm" |
| 1-2 Wire Capacity * | 2" / -32 |
| 4SP Capacity * | 2" / -32 |
| 6SP Capacity * | 1 1/2" / -24 |
| Max Industrial * | 4" |
| Weight | 1820 lbs / 826 kg |
| Power | 7.5 HP 230V - 3 P (Standard) 7.5 HP 440V - 3 P (Optional) 5HP 230V - 1P (Optional) |
Electrical Requirements |
230V - 3 Phase - 20 Amp 440V - 3 Phase- 20 Amp 230V - 1 Phase - 30Amp |
| Reservoir Capacity | 8 US Gallons / 30 L |
| Oil Type | ISO Viscosity Grade 46 |
| Adapter Dies | 160mm to 99 mm |
| Master Die Travel | 4" / 102mm |
| Dies | 99P / 160S |
| Crimps / Hour** | 2850 |
*Crimper capacity is estimated based on typical 1-piece fitting.
Actual results may vary depending on the hose and fitting manufacturer
** Estimated Crimps / hour based on -8 100R2AT hose with 1 piece fitting
EU650 Crimper
CC650 Product Brochure
CC650 Series Operations Manual
View Features and Accessories
- 160OB_Group_BU
- 160S_Group_BU
- 6_Station_Die_Rack_BU
- 84mm_Quick_Change_Tool_BU
- 99S_Group_BU
- AccuCrimp_Control_BU
- Act_Controller_Start_Screen_BU
- Catalog-CC100Mirror
- CC650_Adapter_Dies_160MM_TO_99MM_BU
- CC650_Back_Stop_BU
- CC650_Crimper_BU
- CC650_Easy_Grease_Maintenance_BU
- CC650_Quickly_Exchangeable_Adapter_Dies_BU
- CC650_Quick_Change_Tool_BU
- CC650_Wide_Range_Of_Dies_BU
- CC_Foot_Switch_BU
- Crimper_Stand_16_Die_Holer_Panel_BU
- CrimpX_Mini_Grease_Gun_With_Grease_103889_BU
- Electronic_Back_Stop_BU
- Industrial_Die_Shelf_BU
- Manual_Back_Stop_BU
- Oil_Level_Sight_Glass_BU
EU650 Crimper
| Max Head Opening w/o Dies | 11 1/4" / 286mm |
| Master Die Inside Diameter | 6.29" / 160mm |
| Control System | ACT™ Controller (Automated Crimp Controller) |
| Crimping Force | 350 Ton / 318 tonne |
| Crimper Size | D: 49" x W: 54" x H: 69" D: 1245mm x W: 1372mm x H: 1753mm" |
| 1-2 Wire Capacity * | 3" / -48 |
| 4SP Capacity * | 3" / -48 |
| 6SP Capacity * | 3" / -48 |
| Max Industrial * | 6" |
| Weight | 4000 lbs / 1814 kg |
| Power | 7.5 HP 230V - 3 P (Standard) 7.5 HP 440V - 3 P (Optional) 5HP 230V - 1P (Optional) |
| Electrical Requirements | 230V - 3 Phase - 20 Amp 440V - 3 Phase- 20 Amp 230V - 1 Phase - 30Amp |
| Reservoir Capacity | 24 US Gallons / 91 L |
| Oil Type | ISO Viscosity Grade 46 |
| Adapter Dies | 160mm to 99mm |
| Master Die Travel | 5" / 128mm |
| Dies | 99S / 160S / 160OB Finn Power P32 Imperial Eastman KK200 |
| Crimps / Hour** | 2200 |
*Crimper capacity is estimated based on typical 1-piece fitting.
Actual results may vary depending on the hose and fitting manufacturer
** Estimated Crimps / hour based on -8 100R2AT hose with 1 piece fitting
EU1000 Crimper
CC1000 Product Brochure
CC1000 Series Operations Manual
View Features and Accessories
- 84mm_Quick_Change_Tool_BU
- AccuCrimp_Control_BU
- Act_Controller_Start_Screen_BU

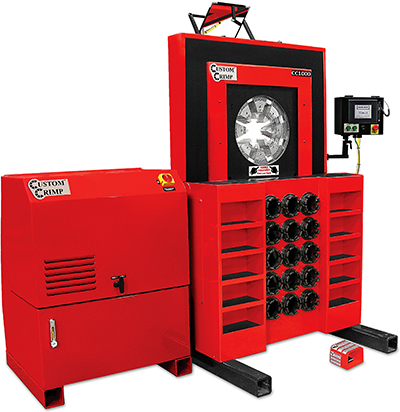

- CC1000_Closed_Tank_BU
- CC1000_Crimper_with_Industrial_Shelves_BU
- CC1000_Easy_Grease_Maintenance_BU
- CC1000_Max_Opening_BU
- CC1000_Power_Unit_BU
- CC1000_Quickly_Exchangeable_Adapter_Dies_BU
- CC1000_Quick_Change_Tool_BU
- CC1000_Wide_Range_Of_Dies_BU
- CC650_Back_Stop_BU
EU1000 Crimper
| Max Head Opening w/o Dies | 13 3/4" / 350mm |
| Master Die Inside Diameter | 9.1" / 230mm |
| Control System | ACT™ Controller (Automated Crimp Controller) |
| Crimping Force | 485 Ton / 440 tonne |
| Crimper Size | D: 54" x W: 62" x H: 86" D: 1372mm x W: 1575mm x H: 2184mm |
| Power Unit Size | D: 28" x W: 34" x H: 45" D: 711mm x W: 864mm x H: 1143mm |
| 1-2 Wire Capacity * | 3" / -48 |
| 4SP Capacity * | 3" / -48 |
| 6SP Capacity * | 3" / -48 |
| Max Industrial * | 10" |
| Weight | 6185 lbs / 2805 kg |
| Power | 7.5 HP 230V - 3 P (Standard) 7.5 HP 440V - 3 P (Optional) 5 HP 230V - 1 P (Optional) |
| Electrical Requirements | 230V - 3 Phase - 20 Amp 440V - 3 Phase- 20 Amp 230V - 1 Phase - 30Amp |
| Reservoir Capacity | 45 US Gallons / 170 L |
| Oil Type | ISO Viscosity Grade 46 |
| Adapter Dies | 230mm to 145mm 145mm to 99mm |
| Master Die Travel | 4.9" / 125mm |
| Dies | 99S / 145S / 230S / 230OB Finn Power P32 Imperial Eastman KK200 |
| Crimps / Hour** | 1030 |
* Crimper capacity is estimated based on typical 1-piece fitting.
Actual results may vary depending on the fitting and hose manufacturer.
** Estimated Crimps / hour based on -8 100R2AT hose with 1 piece fitting
EU1200 Crimper
CC1200 Product Brochure
CC1200 Series Operations Manual
See Featurea and Accessories
See CC1200 Crimper Video below

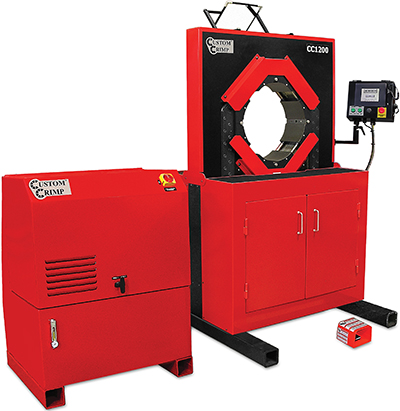

- CC1200_Crimper_BU
- CC1000_Power_Unit_BU
- CC1200_Crimper_with_Industrial_Die_Shelf_BU
- CC1000_Quickly_Exchangeable_Adapter_Dies_BU
- CC1200_Push_Button_System_BU
- CC1200_Crimping_Fitting_BU
- CC1200_Max_Head_Opening_BU
- AccuCrimp_Control_BU
- Act_Controller_Start_Screen_BU
- Catalog-CC100Mirror

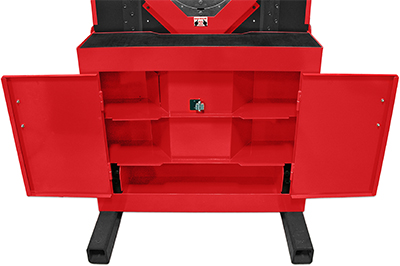

- CC1200_Opened_Cabinet_BU
- CC_Foot_Switch_BU
- CrimpX_Mini_Grease_Gun_With_Grease_103889_BU
- Industrial_Die_Shelf_BU
- 381S_Group_BU
- 230S_Group_BU
- CC1200_160_To_84mm_Group_BU
- CC1200_Adapter_Dies_275MM_TO_160MM_BU
- CC1200_Adapter_Dies_381MM_TO_275MM_BU
EU1200 Crimper
| Max Head Opening w/o Dies | 19 1/4" / 489mm |
| Master Die Inside Diameter | 15" |
| Control System | ACT™ Controller (Automated Crimp Technology Controller) |
| Crimping Force | 485 Ton / 440 tonne |
| Crimper Size | D: 54" x W: 62" x H: 86" D: 1372mm x W: 1575mm x H: 2184mm |
| Power Unit Size | D: 28" x W: 34" x H: 45" D: 711mm x W: 864mm x H: 1143mm |
| Max Industrial * | 4" to 12" |
| Weight | 6185 lbs / 2805 kg |
| Power | 7.5 HP 230V - 3 P (Standard) 7.5 HP 440V - 3 P (Optional) 5HP 230V - 1P (Optional) |
| Electrical Requirements | 230V - 3 Phase - 20 Amp 440V - 3 Phase- 20 Amp 230V - 1 Phase - 30Amp |
| Reservoir Capacity | 45 US Gallons / 170 L |
| Oil Type | ISO Viscosity Grade 46 |
| Adapter Dies | 381mm to 275mm 275mm to 160mm |
| Master Die Travel | 6" / 152mm |
| Dies | 160S / 275S / 381S |
*Crimper capacity is estimated based on typical 1-piece fitting.
Actual results may vary depending on the hose and fitting manufacturer
CC 1200 Video
