Hydraulic Hose Crimpers Mobile and Rigid D Series
12v Crimpers, Electric and Pneumatic Crimpers

Van crimpers for breakdown vans, service vehicles or workshop

The D100 Series Hose Crimpers are the "go anywhere" service crimpers with the power and portability to handle most hose and fitting combinations up to 1 inch hose. The micrometer style adjustability of all of the "D" Series crimpers allows a wide variety of hose and fitting combinations to be crimped to exact manufacturer's specifications without the need for special shims or spacers.

Technical specifications D100H D100P:

  • D100H D100P

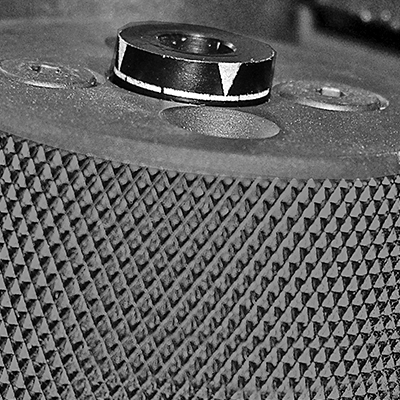

  • Control System Adjustable Micrometer (Metric or Standard or DC)
  • Crimping Force 35 Ton / 32 tonne
  • Crimper Size D: 16" x W: 16" x H: 17" D: 406mm x W: 406mm x H: 432mm
  • Carrying Case D: 16 1/4" x W: 16 1/4" x H: 18" D: 413mm x W: 413mm x H: 457mm
  • 1-2 Wire Capacity * 1" / -16
  • 4SP Capacity * 3/4" / -12
  • 6SP Capacity * N/A
  • Weight 75 lbs / 34 Kg
  • D100H Power Hand Pump 2 Stage
  • D100P Pneumatic Pump 80 psi input
  • Electrical Requirements N/A
  • Reservoir Capacity N/A
  • Oil Type ISO Viscosity Grade 46
  • Adapter Dies N/A
  • Dies D100
    * Crimper capacity is estimated based on typical 1-piece fitting. Actual results may vary depending on the fitting and hose manufacturer.

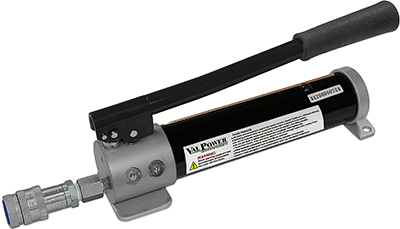

The D100H can be carried anywhere the job demands.

Technical specifications D100P D100H:

  • D100P D100H
  • Control System Adjustable Micrometer (Metric or Standard or DC)
  • Crimping Force 35 Ton / 32 tonne
  • Crimper Size D: 16" x W: 16" x H: 17" D: 406mm x W: 406mm x H: 432mm
  • Carrying Case D: 16 1/4" x W: 16 1/4" x H: 18" D: 413mm x W: 413mm x H: 457mm
  • 1-2 Wire Capacity * 1" / -16
  • 4SP Capacity * 3/4" / -12
  • 6SP Capacity * N/A
  • Weight 75 lbs / 34 Kg
  • D100H Power Hand Pump 2 Stage
  • D100P Pneumatic Pump 80 psi input
  • Electrical Requirements N/A
  • Reservoir Capacity N/A
  • Oil Type ISO Viscosity Grade 46
  • Adapter Dies N/A
  • Dies D100
    * Crimper capacity is estimated based on typical 1-piece fitting. Actual results may vary depending on the fitting and hose manufacturer.

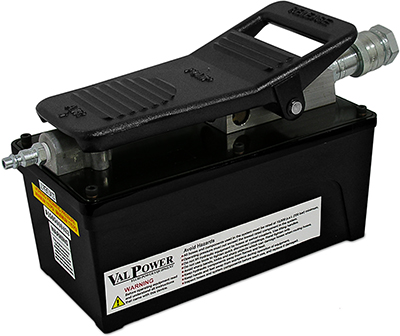

This Pneumatic Hose Crimper used where a source of 80 psi air is available.

Pneumatic or Hand Pump - Mobile Hose Crimper D160SH - D160SP

Pneumatic or Hand Pump - Mobile Hose Crimper D160S

D160 Manual

D160S Portable Crimper Brochure

See D160/165 Video below

Technical specifications D160SH - D160SP:

TECHNICAL SPECIFICATIONS D160-SH D160-SP
  • Max Head Opening w/o Dies 2.51" / 64mm
  • Die Opening Die Size plus + .53" / 13.5mm
  • Control System Adjustable Micrometer (Metric or Standard or DC)
  • Crimping Force 62 Ton / 56 tonne
  • Crimper Size D: 17" x W: 10 1/4" x H: 21" D: 431mm x W: 260mm x H: 533mm
  • 1-2 Wire Capacity * 1 1/4" / -20
  • 4SP Capacity * 1 1/4" / -20
  • 6SP Capacity * N/A
  • Weight 72 lbs / 33 Kg
  • D160SH Power Hand Pump 2 Stage
  • D160SP Pneumatic Pump 80 psi Input
  • Electrical Requirements N/A
  • Reservoir Capacity N/A Oil Type ISO Viscosity Grade 46
  • Adapter Dies N/A
  • Dies D100
The D160S can be carried anywhere the job demands.

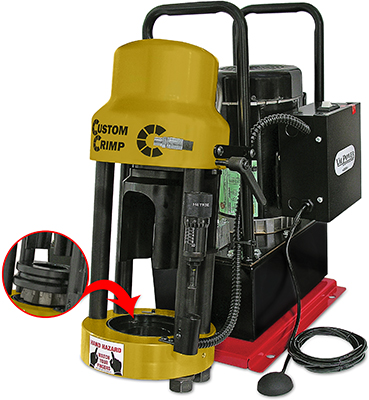

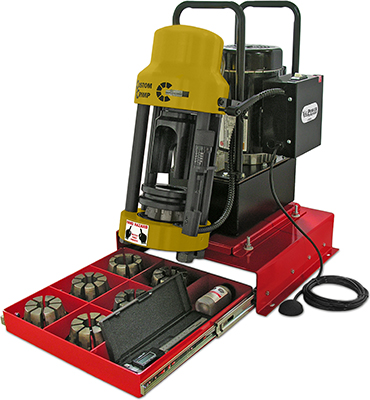

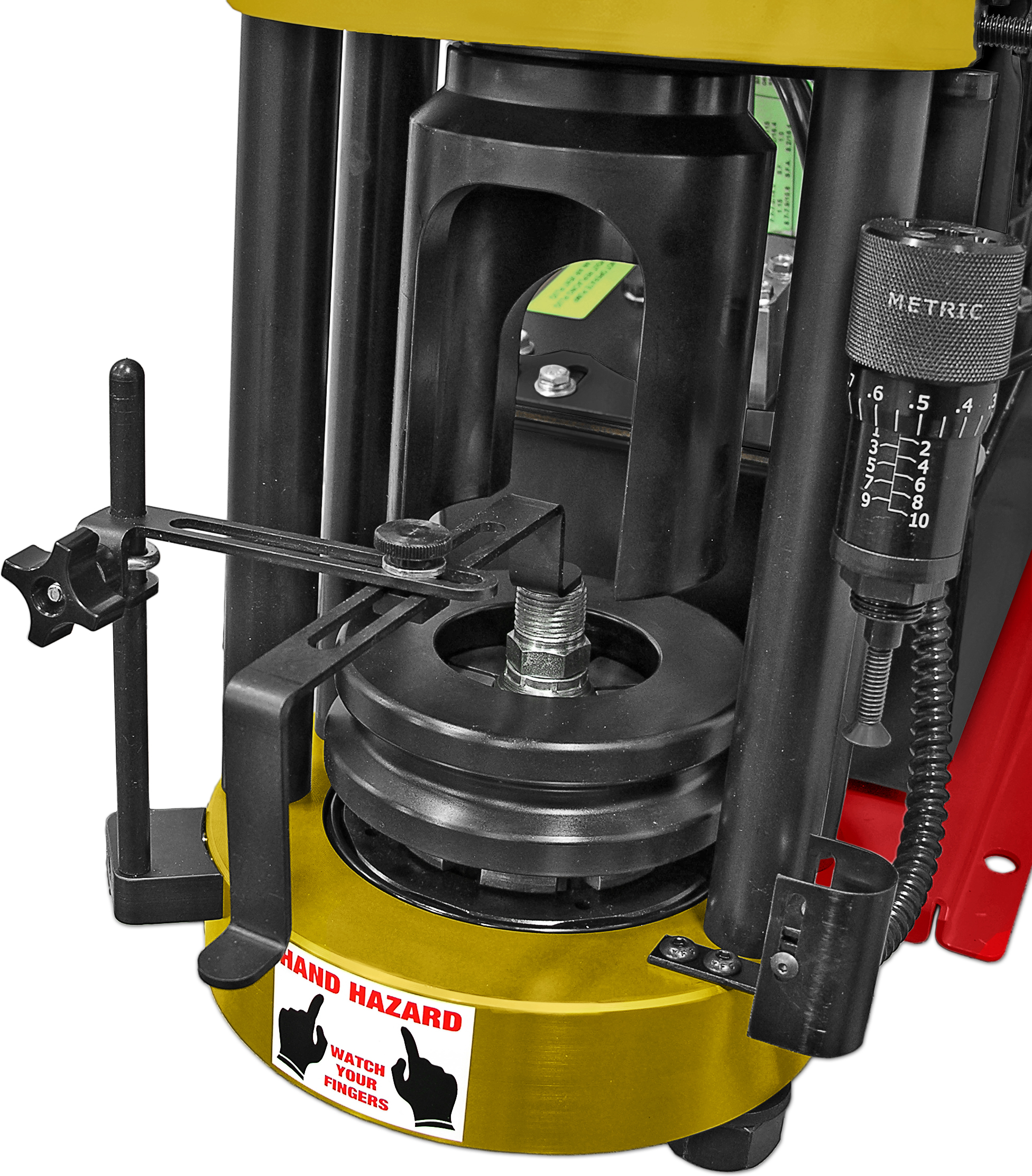

Technical specifications D165 - D165T420:

TECHNICAL SPECIFICATIONS D165 D165-T420

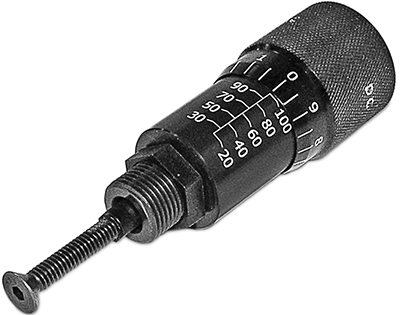

  • Control System D165 Adjustable Micrometer (Metric or Standard or DC)
  • Control System D165T420Adjustable Micrometer
  • Crimping Force 62 Ton / 56 tonne
  • Crimper Size D: 22 1/2" x W: 13" x H: 22 1/2" D: 571mm x W: 330mm x H: 571mm
  • 1-2 Wire Capacity * 1 1/4" / -20
  • 4SP Capacity * 1 1/4" / -20
  • 6SP Capacity * 1" / -16
  • Weight D165: 140 lbs / 64 Kg D165-T420: 154 lbs / 70 Kg
  • Power 1 HP 110V (Standard) 2 HP 220V (Optional) 1 HP 12V (Optional) 1 HP 24V (Optional)
  • Electrical Requirements 110V - 1 Phase - 15 Amp 220V - 1 Phase - 20 Amp 12V DC Power (Truck/Auto) 24V DC Power (Truck/Auto)
  • Reservoir Capacity 1 Gallon / 4.5 L
  • Oil Type ISO Viscosity Grade 46
  • Adapter Dies N/A
  • Dies D100 T420
  • Crimps / Hour** 300
* Crimper capacity is estimated based on typical 1-piece fitting. Actual results may vary depending on the fitting and hose manufacturer.
** Estimated Crimps / hour based on -8 100R2AT hose with 1 piece fitting.

D Series Crimpers Video
